AiM MXG 1.3 Dash Logger + GPS Module 4.0M Cable

Brand: AIM Sports

The AiM MXG 1.3 data logging dash represents a huge leap forward in racing display flexibility. The brilliant 800x480 pixel (7" diagonal) TFT display frees you from the constraints of a single, factory-designed LCD display. The MXG 1.3 shows you the data you want, the way you want.

Eight analog input channels can sample, log, and display a wide range of temperatures, pressures, or potentiometers (throttle position, steering position, etc). A CAN input allows you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs, sold separately. These hubs let you connect other inputs such as Lambda (O2), SmartyCam, or even channel expansion hubs, without using any analog channels! The MXG 1.3 can also be connected to many different ECUs to log any data gathered by the ECU. An internal gyroscope, GPS module, 4 wheel speed channels, a lap time receiver input, and 2 digital outputs round out the package. It all adds up to a flexible, expandable data logger that can grow with you.

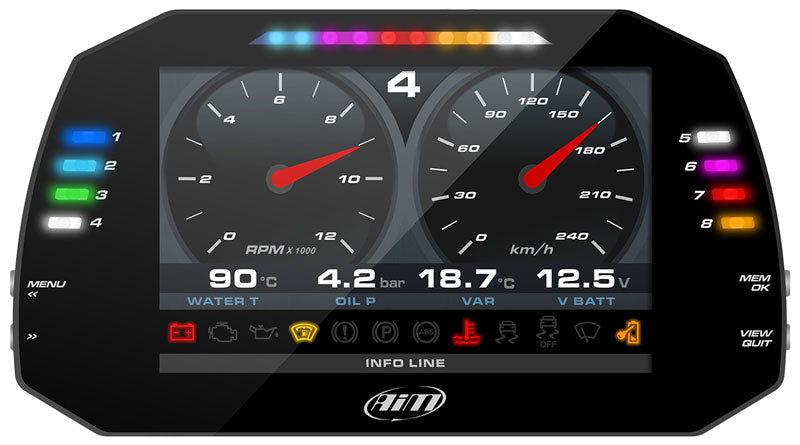

The large 9.3" x 5" anodized aluminum housing features a wide, full-color screen. The wide, auto-dimming display can be set by the user to a number of different screen designs. You can even create up to 8 different pages, all using different screen designs. Ten configurable shift light LEDs across the top of the housing and 8 configurable alarm LEDs along the sides can all be programmed with any of 7 colors. Each alarm can be programmed with a steady or flashing LED, a custom text message on the screen, and multiple conditions (for example, oil pressure below 60 psi and engine speed above 4000 RPM). Two digital outputs (1 amp @ 12v) can be used to trigger external warning lights, fan relays, etc based on similar logic as the alarms. The shift lights can be programmed separately for each gear, if desired. Set them to come on sooner in low gears and closer to redline in high gears, set different colors for each gear, and more!

An additional screw-in port on the back of the MXS 1.3 lets you connect two analog cameras (not included) to turn the dash into a backup or rear-view-mirror display. Note that the AiM SmartyCam is not compatible with this port, and the cameras connected to this port do not receive a data feed.

The 4GB non-volatile memory can store many hours of information for detailed analysis using AiM's latest Race Studio 3 software. All of the data can be downloaded to your computer using a built-in secure Wi-Fi connection (no cable required). Requires 9 - 15V external power supply.

Kit includes MXG 1.3 data logging display, wiring harness with 37 pin Deutsch connector, and GPS09 module with a 4 meter (13 foot) cable. All sensors sold separately. Race Studio 3 software is always available as a free download from AiM.

Note: Analog channels 5-8, Speed inputs 2-4, digital outputs, and RS232 ECU connection require the addition of the AiM MXG Auxiliary Wiring Harness with 22-Pin Deutsch Connector, (sold separately).
